Framed fine and crimped woven screens with defined clear area, frame section, edge retention and mounting. HVAC dimensions and a documented kitchen-filter project.
Metal wire meshShare a drawing, reference sample or application requirements to discuss the configuration.

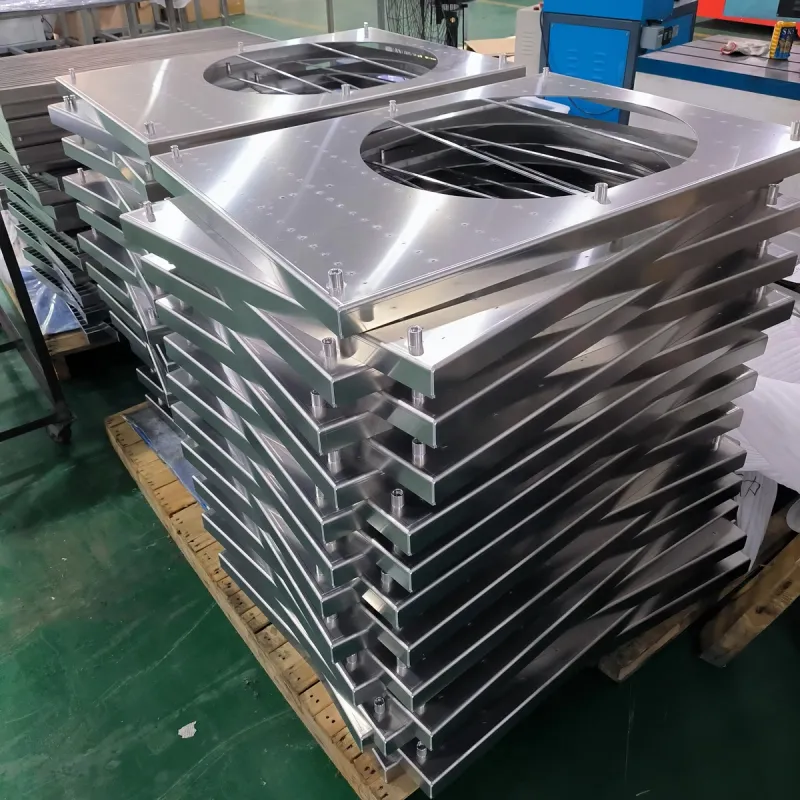

Framed wire mesh panels — Product view
The frame holds the woven filtering surface around its perimeter. Fine woven cloth uses a defined weave, wire diameter and aperture; crimped woven mesh uses pre-crimped wires to stabilize the square openings and heavier wire intersections. Both are woven structures. The frame section, corner joints, edge capture and cross-supports define how loads transfer into the equipment.
Outside frame size, clear screening window and frame depth are separate dimensions. Bolt holes, sliding guides or clamps locate the panel; a continuous gasket land controls perimeter bypass. Inspection checks squareness, flatness, cloth tension, crimp geometry, edge retention and mounting holes. A kitchen-filter assembly uses a 325 × 117 × 12 mm AISI 304 expanded-metal and corrugated construction. Its material layers and dimensions identify that dedicated filter assembly.
| Feature | Technical definition |
|---|---|
| Woven surface | Weave or crimp pattern, wire diameter and clear opening |
| Frame | Section, depth, corner connection and captured wire edges |
| Support and mounting | Crossbars, unsupported span, mounting holes, clamps or slides |
| Selected square-weave apertures | 0.38–2.03 mm |
| Square-weave calculation | 20 mesh /wire Ø0.25 mm /opening 1.02 mm |
| Drawing window | Clear screening window 500 ×500 mm; outside frame dimensions separate |
The outside frame dimensions define the installation fit. The exposed window defines the area available to the mesh; rear bars and other obstructions then reduce the assembly flow area. Record all three separately. An open-area percentage for the cloth describes the cloth geometry, while the framed assembly also includes its clamped perimeter and rear support layout.
A welded edge and a removable clamping strip give different access to the mesh. Specify how the mesh is retained, which face contacts the support and where the panel is fastened. For a replacement, preserve the working-face direction, support contact and lift-out or slide-out path as well as the overall width and length.
| Feature or construction | Role in the assembly | Drawing or acceptance check |
|---|---|---|
| Outside frame | Fits the equipment opening | Overall dimensions, squareness and fixing positions |
| Exposed mesh window | Defines the unclamped screen area | Clear width and length inside the frame |
| Rear supports | Carry the mesh and occupy flow area | Bar width, spacing and contact side |
| Mesh retaining edge | Holds the cloth in position | Welded edge or removable clamp arrangement |
| Removal route | Provides access to both faces | Lifting or sliding clearance and fastener access |
1 frame; 2 mesh window; 3 rear support. W and L identify the exposed window. Deduct the support obstruction when defining assembly flow area.
| Mesh count / inch | Wire diameter (mm) | Clear aperture (mm) |
|---|---|---|
| 10 | 0.51 | 2.03 |
| 20 | 0.406 | 0.86 |
| 30 | 0.305 | 0.54 |
| 40 | 0.254 | 0.38 |
Select the cloth by its paired opening and wire diameter. The frame outside size and the clear window remain separate; frame overlap and rear supports reduce the exposed area.
| Supply item | Order basis |
|---|---|
| Production lead time | 2–3 weeks after order and drawing confirmation. |
| Trial orders | Small trial quantities for fit and process evaluation. |
| Regular production orders | 50 pieces or US$3,000 per order. |
| Quotation basis | Material, finished dimensions, filter construction, connections and quantity. |
| Parameter | Specification | Notes |
|---|---|---|
| Woven surface | Weave or crimp pattern, wire diameter and clear opening | — |
| Frame | Section, depth, corner connection and captured wire edges | — |
| Support and mounting | Crossbars, unsupported span, mounting holes, clamps or slides | — |
| Selected square-weave apertures | 0.38–2.03 mm | Each table row pairs one mesh count, wire diameter and aperture; finished-part dimensions are specified separately. |
| Square-weave calculation | 20 mesh /wire Ø0.25 mm /opening 1.02 mm | — |
| Illustrated geometry | Clear screening window 500 ×500 mm; outside frame dimensions separate | Geometry of the illustrated construction; finished dimensions follow the equipment interface drawing. |
| Material | 304 / 316L stainless steel | — |
Include these details when discussing your requirements.
View specificationsThe frame locates a removable screen across the equipment opening.
Cross-supports shorten the unsupported span while the woven surface defines the opening.
Outside frame size, clear screening window and frame depth are separate dimensions. Bolt holes, sliding guides or clamps locate the panel; a continuous gasket land controls perimeter bypass. Inspection checks squareness, flatness, cloth tension, crimp geometry, edge retention and mounting holes. A kitchen-filter assembly uses a 325 × 117 × 12 mm AISI 304 expanded-metal and corrugated construction. Its material layers and dimensions identify that dedicated filter assembly.
The frame holds the woven filtering surface around its perimeter. Fine woven cloth uses a defined weave, wire diameter and aperture; crimped woven mesh uses pre-crimped wires to stabilize the square openings and heavier wire intersections. Both are woven structures. The frame section, corner joints, edge capture and cross-supports define how loads transfer into the equipment.
