Metal Filter Elements & Filtration Components
Find the right construction by product form, filter media or manufacturing technology.
Compare product forms, media and manufacturing options for your installation.
Find a product
Pleated stainless steel wire mesh filter cartridges
Kaifil manufactures pleated stainless steel wire mesh cartridges with multilayer support, perforated cores and optional outer guards.
View details
Wire mesh filter discs
Kaifil cuts woven wire cloth into round, annular and drawing-defined filter inserts.
View details
Multilayer screen packs
Multilayer screen packs combine a filtering mesh with selected support and drainage layers in one installable assembly.
View details
Mesh-lined strainer baskets
Perforated baskets with fine woven liners, defined seam continuity and retaining rings.
View details
Wedge wire screen panels
Kaifil manufactures flat wedge wire screen panels with continuous slots, welded profile wires and transverse supports.
View details
Sintered mesh filter cartridges
Kaifil manufactures reusable stainless steel sintered mesh cartridges with rigid bonded media, welded seams and threaded, plain-end or O-ring connections.
View details
Perforated filter support cores
A perforated filter support core is the load-bearing and drainage structure behind a flexible or pleated filtering medium.
View details

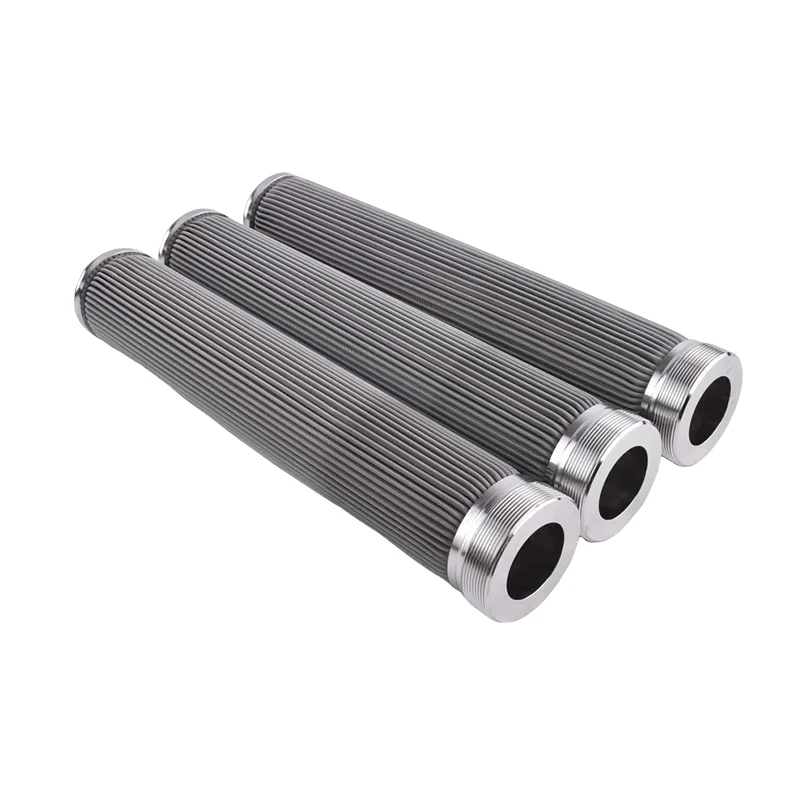

Sintered Metal Fiber Felt Filter Cartridges
Kaifil manufactures pleated and cylindrical sintered metal-fiber felt cartridges.
View details
Stainless Steel Flanged Filter Elements
Kaifil manufactures stainless steel flanged filter cartridges with wedge wire, woven mesh, sintered mesh, perforated metal or pleated filtering bodies.
View details
Woven mesh filter cylinders
Stainless steel woven mesh cylinders combine a defined wire-cloth opening with a welded cylindrical body, reinforced ends and flow-directed support.
View details
Wedge wire filter cylinders
Continuous-slot wedge-wire cylinders provide a rigid screen surface for water intake, resin retention and process separation.
View details
Laser-slotted filter tubes
Kaifil manufactures laser-slotted filter tubes with axial, circumferential, staggered or zoned patterns.
View details

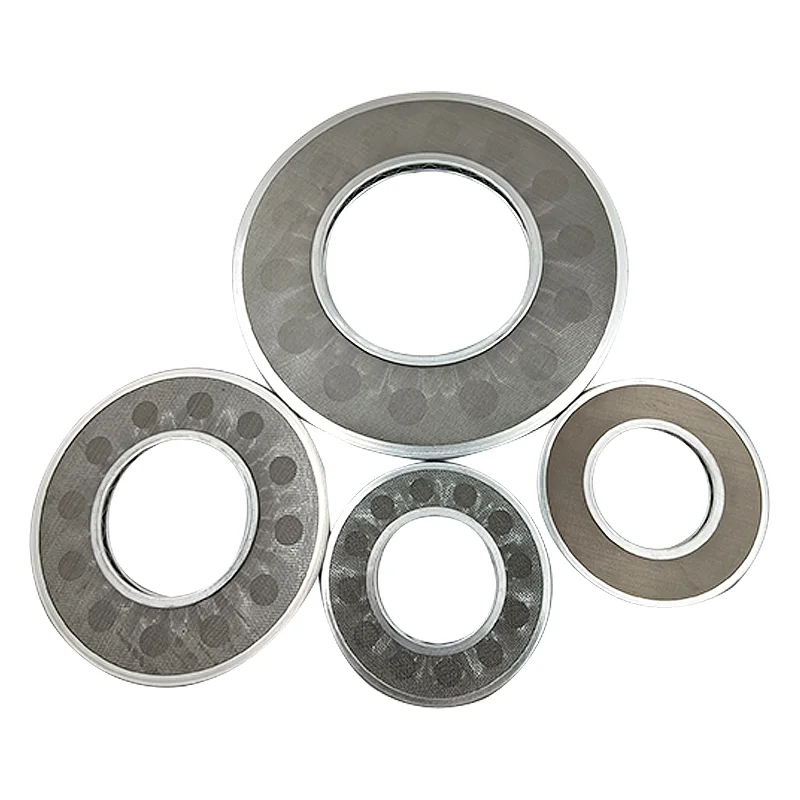

Annular wire mesh filter discs
An annular disc surrounds a shaft, port or central fastener with a woven filtering ring.
View details

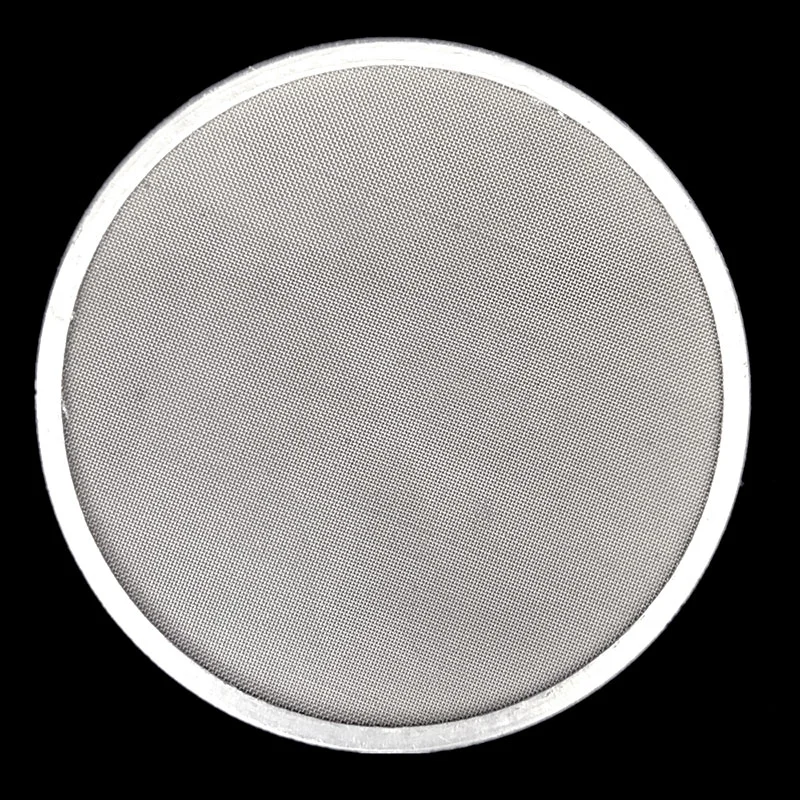

Rimmed wire mesh filter discs
The rim captures cut wire ends and holds single or multilayer cloth in position.
View details

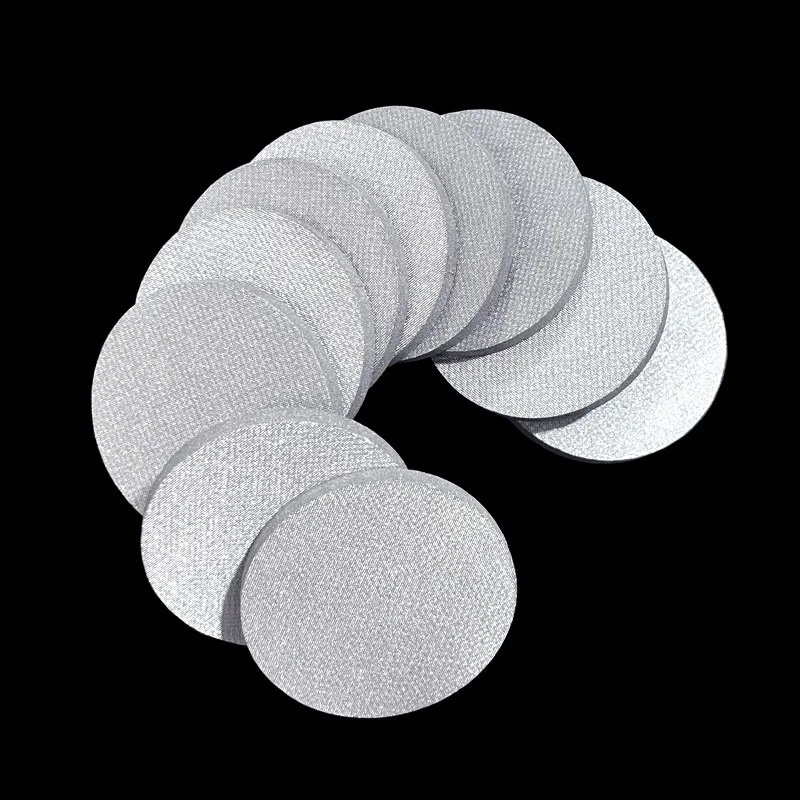

Sintered mesh filter discs
Sintered-mesh filter discs are rigid bonded laminates for defined openings and repeated handling.
View details

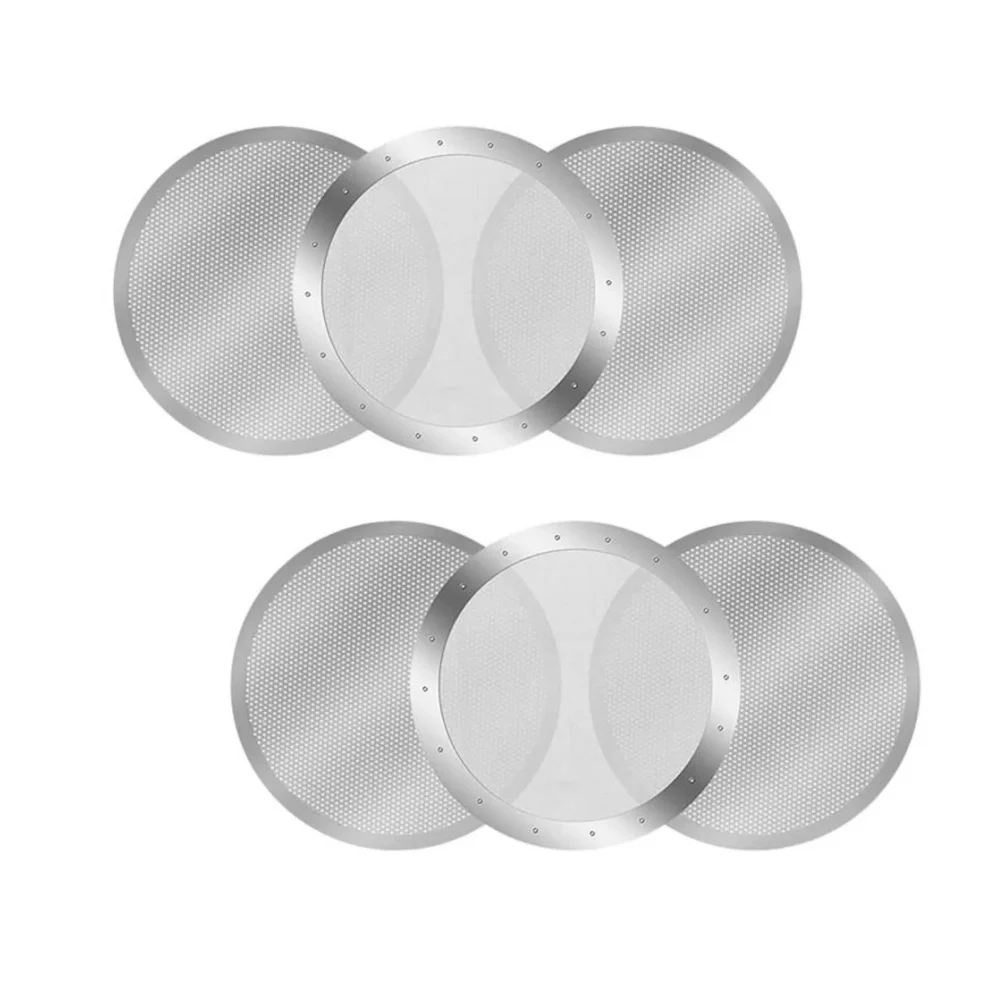

Photo-etched filter discs
Locate the aperture field concentrically within the outside diameter.
View detailsBy product form
By product form
Start with the installed shape and equipment interface.
By product form
Metal filter cartridges
All-metal filter cartridges in pleated woven mesh, bonded sintered mesh and sintered metal fiber felt. Stainless-mesh configurations cover 2–840 µm and nominal lengths of 4⅞–40 in, with DOE, 222, 226 or threaded ends. Media construction, support and end sealing are specified together for the housing and cleaning cycle.
- Includes
- Double-open-end cartridges · Single-open-end cartridges · Flanged cartridges and inserts · Porous metal elements
- Typical use
- Process liquid filtration · Hot gas and vent duties · Equipment replacement
By product form
Filter cylinders and tubes
Custom woven-mesh cylinders, perforated support tubes and wedge-wire screen cylinders for equipment inserts and replacement assemblies. Define the filtering wall, support, longitudinal seam, end condition and flow direction as one finished tube assembly.
- Includes
- Open-ended cylinders · Perforated support cores · Filter nozzles · Pulp pressure-screen baskets
- Typical use
- Process housings · Cartridge cores · Vessel internals · Automatic and self-cleaning filters
By product form
Filter discs and cut screens
Filter discs and cut screens in woven wire mesh, sintered mesh, perforated sheet and precision foil, with round, annular and drawing-defined outlines. Multilayer mesh-disc configurations cover 10–580 mm diameter, 3–200 µm media grades and 3–5 layers. The filtering medium, support, edge finish and mounting land form one specified assembly.
- Includes
- Round filter discs · Annular screens · Edged and framed discs · Leaf-disc assemblies
- Typical use
- Inline holders · Valve and nozzle protection · Extrusion equipment
By product form
Screen packs
Replaceable screen packs for polymer-melt filtration, from loose and spot-welded stacks to rimmed and diffusion-bonded assemblies. Layer sequences include 20/40/20 and 40/80/200/80/40 mesh. Each pack is defined by the inlet-to-outlet layer schedule, wire and aperture, support, finished thickness and screen-changer interface.
- Includes
- Round screen packs · Kidney and oval packs
- Typical use
- Film extrusion · Recycling and compounding · Pelletizing
By product form
Strainer baskets
Custom strainer baskets with perforated, woven-mesh-lined or wedge-wire walls. Match the seating rim, basket body, closed bottom and removal handle to the housing; select the filtering surface and support for the process fluid and flow direction.
- Includes
- Straight-sided baskets · Flanged baskets · Centrifuge screen baskets
- Typical use
- Cooling and process water · Batch processing · Replacement elements · Pump suction and machinery protection
By product form
Cone strainers
Pointed cone, truncated cone and flat start-up strainers capture construction debris during pipe flushing and commissioning. We manufacture the perforated support, optional fine-mesh lining and retaining ring as one installation-specific assembly, with the flow direction and removal clearance defined on the drawing.
- Includes
- Witch-hat strainers · Truncated cone strainers · Basket cone strainers · Flat start-up screens
- Typical use
- Pump protection · Auxiliary liquid circuits · Plant turnaround · New pipeline commissioning · Pump and compressor protection
By product form
Filter cups and domed screens
Formed metal mesh cups, flanged inserts and domed screens protect compact fluid passages. We match the finished mouth, seating rim and filtration surface to the port geometry, combining the selected mesh with a support layer where the assembly carries a directional flow load.
- Includes
- Shallow filter cups · Deep-drawn filter cups · Domed screens
- Typical use
- Nozzle inlets · Valve ports · Instruments · Vent and breather ports · Compact instrument protection
By product form
Filter panels and framed screens
Flat and curved metal screen panels combine a defined screening surface with its frame, edge restraint and rear supports. Woven mesh, perforated plate, wedge wire and laser-slotted panels are made to the machine opening, working face and replacement method.
- Includes
- Flat filter panels · Framed screens · Curved screen panels
- Typical use
- Liquid screening · Pre-screens · Equipment internals · Trommel and rotary screens
By product form
Demister pads and mesh blocks
Knitted wire-mesh demister pads collect entrained liquid droplets from gas and provide a drainage path for the coalesced liquid. Complete pads, manway-sized segments and compressed knitted-mesh blocks each have a defined geometry, support and operating function.
- Includes
- Circular demister pads · Segmented vessel pads · Knitted mesh blocks
- Typical use
- Evaporators · Scrubbers · Knockout vessels · Distillation and packed towers
Drawing-based manufacturing
Custom manufacturing & accessories
Filter media, support and installation interfaces
Have a drawing, sample or replacement requirement?
Request a quote
Custom metal filter manufacturing
Metal filter elements and fabricated parts made from drawings, samples or defined operating requirements. Review media, support, connections and inspection before production.
View details
Filter parts and accessories
Filter bags, support baskets, seals, flanges, end caps and fastening parts matched to the filter assembly or replacement housing.
View detailsBy media and technology
By media and technology
Compare the filtering surface, support and manufacturing route.
By media and technology

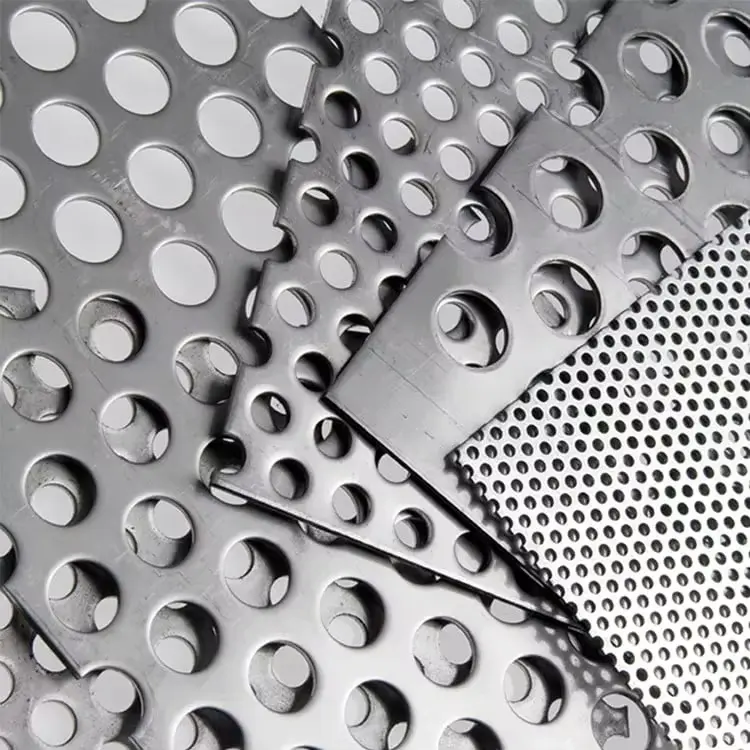

Filter media rolls and sheets
Metal filtration media in full-width rolls, slit strips, sheets and cut blanks for filter manufacture. Define woven cloth by its complete wire and weave specification, sintered mesh by bonded layer construction, and metal-fibre felt by grade, thickness and test basis; match the delivery format to the next fabrication operation.
- Includes
- Full-width rolls · Flat sheets · Slit strips
- Typical use
- OEM conversion · Filter manufacture · Maintenance · Polymer melt filtration
By media and technology
Metal wire mesh
Industrial woven wire mesh in plain and twill square weaves, plain and twill Dutch weaves, and reverse Dutch filter belts. Select the weave and paired wire geometry, then the alloy, supply format and fabrication route.
- Includes
- Wire mesh rolls · Wire mesh sheets · Slit mesh strips · Fabricated wire-mesh components
- Typical use
- Square-opening screens · Fine filter cloth · Continuous belts · Screening and sizing
By media and technology
Wedge wire screens
Wedge wire screen panels, cylinders and baskets combine a defined slot with a welded profile-wire support structure. Match the working face, slot direction, exposed area and support span to separation, drainage or equipment protection.
- Includes
- Flat wedge wire panels · Wedge wire cylinders · Wedge wire baskets · Filter nozzles · Curved wedge-wire screens · Centrifuge screen baskets · Pulp pressure-screen baskets
- Typical use
- Media retention · Dewatering · Intake cylinders
By media and technology
Sintered metal filters and media
Sintered wire mesh, metal fiber felt and sintered-powder media are supplied as sheets, discs and cartridges. Specify pore structure, filtration grade, thickness, support and end connections with the test conditions and cleaning acceptance.
- Includes
- Sintered filter discs · Sintered media sheets · Sintered filter cartridges
- Typical use
- Reusable elements · Pleated elements · Diffusion
By media and technology
Perforated metal screens
Perforated panels, support cores and removable baskets use a controlled hole pattern in formed metal sheet. Specify the hole field, solid margins, support span and finished shape for screening, media support and strainer service.
- Includes
- Flat perforated screens · Perforated support tubes · Perforated baskets · Framed perforated panels
- Typical use
- Filter cores · Strainer baskets · Screen panels · Beneath a finer medium
By media and technology
Laser-perforated and slotted screens
Kaifil manufactures laser-perforated and slotted metal screens as discs, flat panels, framed screens and tubes. Programmed aperture patterns combine filtration, flow distribution and mounting features in one component.
- Includes
- Laser-drilled discs and flat screens · Laser-perforated and slotted tubes · Slotted panels and framed screens
- Typical use
- Liquid strainer inserts · Water polishing and membrane protection · Dewatering screen panels · Slotted screen tubes
By media and technology
Etched and electroformed screens
Kaifil manufactures photo-etched stainless steel screens and electroformed nickel screens as flat foils, discs and patterned OEM components. Custom aperture fields, solid borders and mounting features are integrated into the finished outline.
- Includes
- Flat precision screens and foils · Precision filter discs
- Typical use
- Instrument inlet protection · Compact filter discs · Liquid and slurry screening · Patterned OEM components
By media and technology
Materials and alloys for metal filtration
Select stainless steel, duplex stainless steel, nickel alloys or pure nickel for woven mesh, sintered media and fabricated filter components. Compare grades, chemistry and service conditions, then connect the material to the filter construction.
View detailsCompare filter constructions
| Product form | Choose it when | Confirm first |
|---|---|---|
| Cartridge | A removable element must seal into a housing | Envelope, end connection, seal, flow and cleaning |
| Cylinder or tube | A simple cylindrical screen or support is needed | Diameter, seam, ends, media and pressure direction |
| Disc | A flat screen fits a compact seat or cavity | Outline, media, edge, thickness and support |
| Screen pack | Several layers must install as one controlled stack | Layer order, joining, cavity and pressure trend |
| Basket | Solids must collect in a removable body | Housing seat, area, support, handle and maintenance access |
| Cone | A shaped pipeline screen provides equipment protection | Flange, orientation, length, aperture and pressure direction |
| Panel | A large installed surface requires framing and support | Clear opening, frame, supports, flow and deflection |
Final construction depends on the complete equipment interface and operating conditions.
Technical enquiry
Define the dimensions, media, joints and inspection records before confirming the order.
